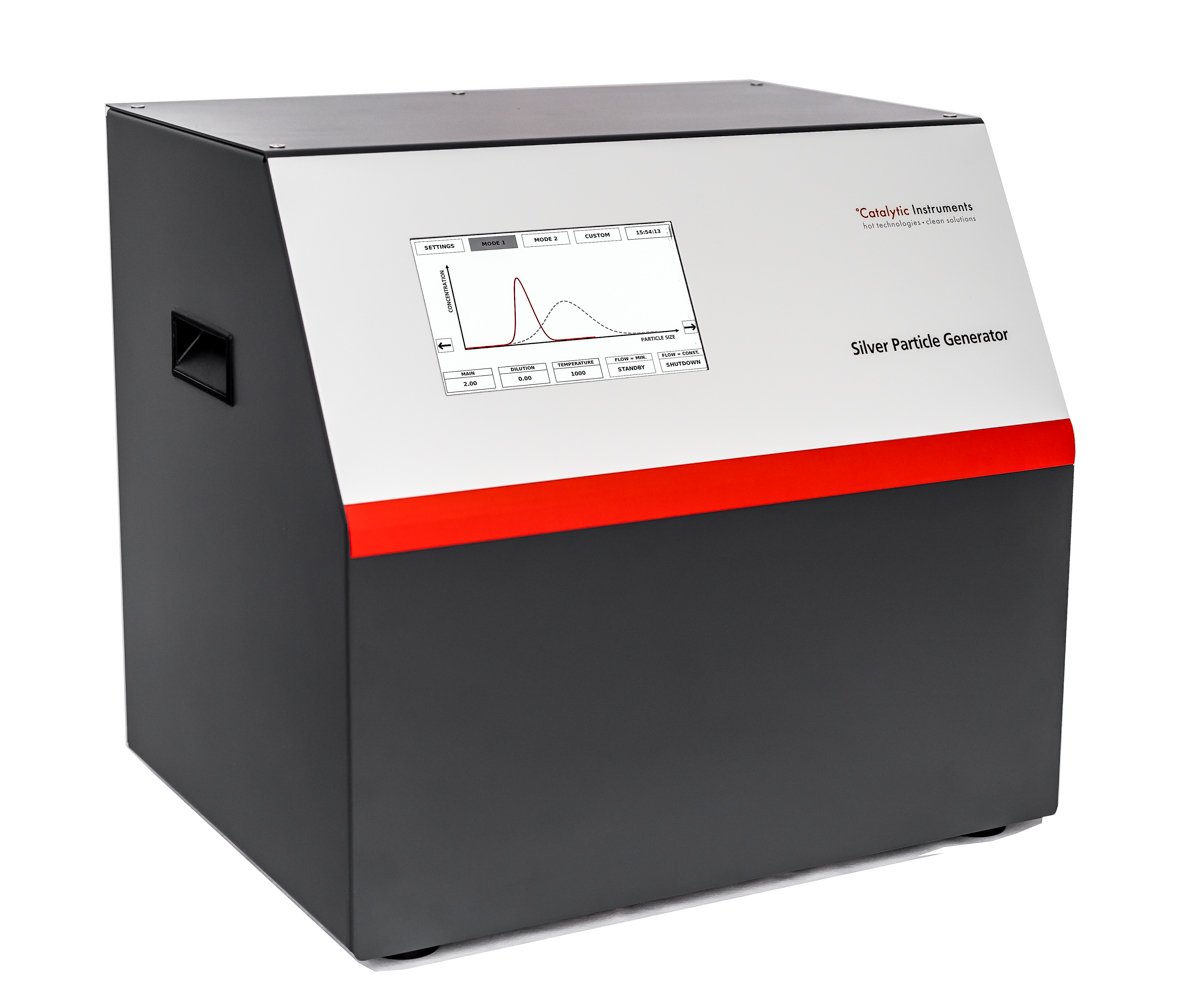

°Silver Particle Generator generates solid silver aerosols used for calibrating particle counters, emission studies, and air quality research an easy and effective way.
POWER AND INPUT
- 100-240 VAC 50/60 Hz
- USB interface – Modbus communication
SPECIFICATION
- 0 – 25 LPM outlet flow rate range
- Outlet pressure: 1-2 bar (gauge)
- Outlet gas temperature (nominal): above ambient temperature (+ 30°C)
- Inlet gas: N2 or Air compressed at 25 (± 5) °C; 1-2 bar (gauge)
FEATURES AND BENEFITS
- Short warm-up time (< 15 mins)
- Wide particle size range (2 nm† – 200 nm)
- High concentrations (> 1 x 107 #/cm)
- Remote data logging (USB, LAN)
- Stable and repeatable (±1% GSD; GMD)
- One-touch presets for quick select size modes with customisable settings
- Temperature Settings: (Mode 1: 1000°C, Mode 2: 1100°C)
