Compact°Catalytic Vapor Filter
CCVF100
Inlet Tube
6 mm
Working / Ambient Temperature
50 to 104 °F (10 to 40 °C)
Inlet Gas Temperature
25 °C < T < 400 °C
Outlet Gas Temperature
< 60 °C
Ambient Humidity
0 to 95% RH (non-condensing)
Pressure Range
+200 to -500 mbar (relative to ambient)
Effluent gas: butanol or isopropyl alcohol
Max concentration: 10,000 ppm C1
Removal efficiency: > 99.99%
Location: indoor use only
Power supply: 100 – 240 VAC, 50/60 Hz
24 VDC power supply
Weight: 4.5 kg
Dimensions: 138 x 303 x 138 mm
Applications
- Exhaust measurements
- Ultrafine particle roadside measurements
- Public spaces
- Clean-room/chamber studies
- Remote sites

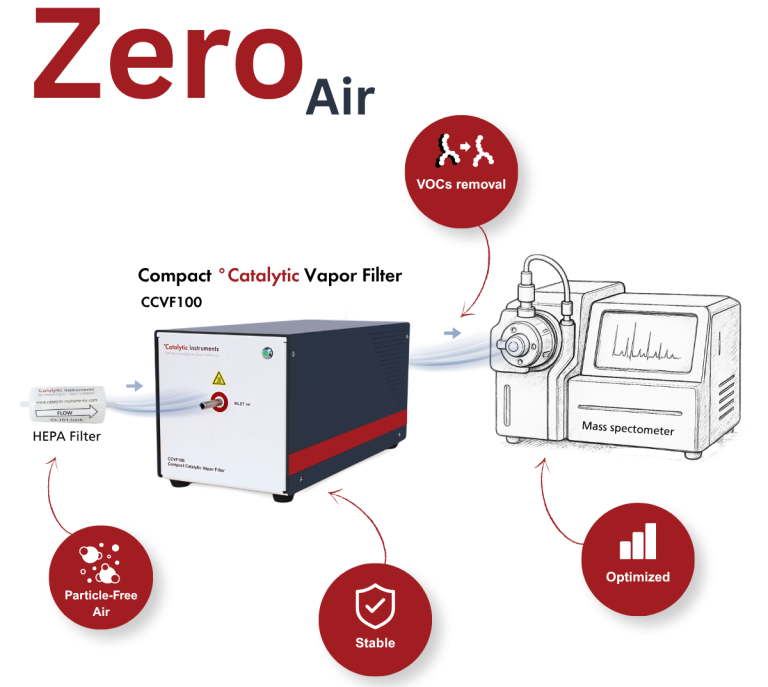

- Proximity to mass spectrometry
Eliminate concerns about contamination of measurements in cleanroom or ambient environments with the Catalytic Vapor Filter (CCVF100). This plug-and-play device is compatible with most common Condensation Particle Counter (CPC) models.

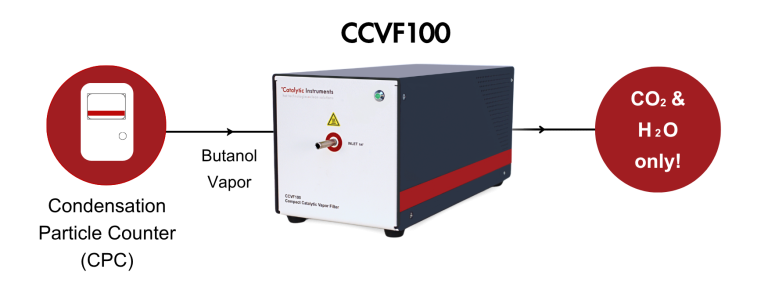

The principle of operation of the Catalytic Vapor Filter is simple yet effective: to remove gas-phase hydrocarbons such as butyl or isopropyl alcohol using a heated catalyst.

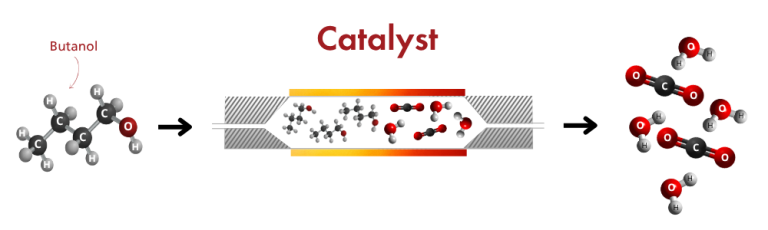

How it works?
During operation, the process is seamless: simply connect the outlet of your CPC to the inlet of the CCVF100. Here, hydrocarbons undergo rapid oxidation, transforming into harmless CO2 and H2O, which are then efficiently expelled from the catalyst into the CCVF100 housing. As the hot effluent cools within the device, it exits through the outlet located on the back, maintaining a smooth and continuous flow.
Designed exclusively for indoor use, the CCVF100 boasts an IP30 protection rating, ensuring both safety and optimal performance in any indoor environment. This robust design not only guarantees the longevity of your equipment but also provides peace of mind, allowing you to focus on accurate measurements without compromise.
